NAC-402-X4

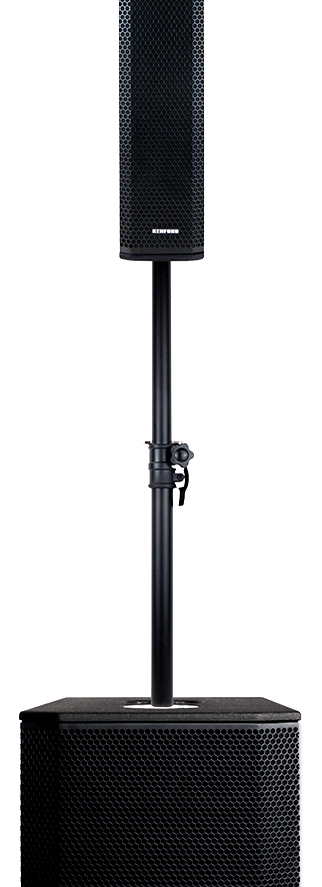

1.1 Active satellite system

The Kenford 1.1 Active Satellite System NAC-402-X4 with a total power of 1000 W (RMS / 4Ohm), provides a powerful and balanced sound for bands, DJs, the professional PA rental, as well as for fixed installations. The natural sound reproduction, a low distortion and high sound range, guarantees a brilliant voice reproduction to the last rows.

The use of a digital amplifier, a slim top column with 4 neodymium speakers and the ergonomically shaped carrying handle make this system to the ideal partner for mobile use at events with around 100 people. A digital signal processor (DSP) with 5 pre-installed sound modes makes it possible to adapt the system to a wide range of applications.

Technical specifications

CH-4x4

Chassis: 4x 4“ Neodymium Mid-tone/Woofer
Mid-tone-/Woofer voice coil: 1“
Frequenzy response: 95 Hz - 13 kHz
Impedance: 8 Ohm
Power: 280 W / 140 W (RMS)
Sensitivity (1W/1m): 95 dB
Max. SPL: 118 dB (1m)
Connection: PA, conventional speaker connector
Measurement (HxWxD): 67,3 x 13,5 x 14 cm
Weight 6,0 kg

NAC-402 MK2 active subwoofer

Chassis: 12“ Woofer
Subwoofer voice coil: 2,5“
Frequenzy response: 38 - 500 Hz
Impedance: 8 Ohm
Power: 600 W / 300 W (RMS)
Max. SPL (1m): 126 dB
Connection: PA / XLR / 1/4“ jack
Measurement (HxWxD): 53,3 x 36,4 x 48,2 cm
Weight: 25 kg

Amplifier module

Output power: 2x 500 W / 4 Ohm
S/N: > 95 dB
Damping factor: > 500 at 100 Hz
Protection: Over voltage protection up to 264V/AC, overload output protection, clip , limiter, CLIP

KENFORD NAC-402 MK2

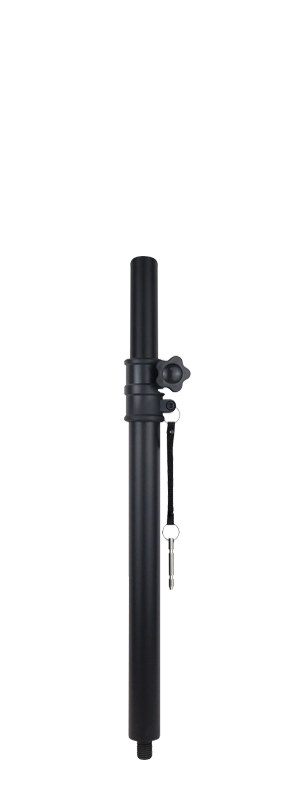

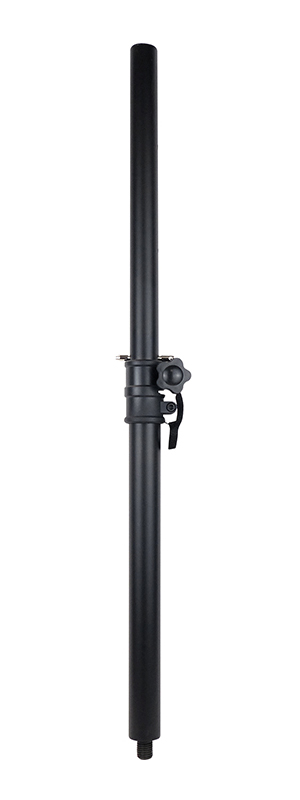

KENFORD Extension Tube

KENFORD CH-4x4 Satellit
