NAC-602

1.1 Active satellite system

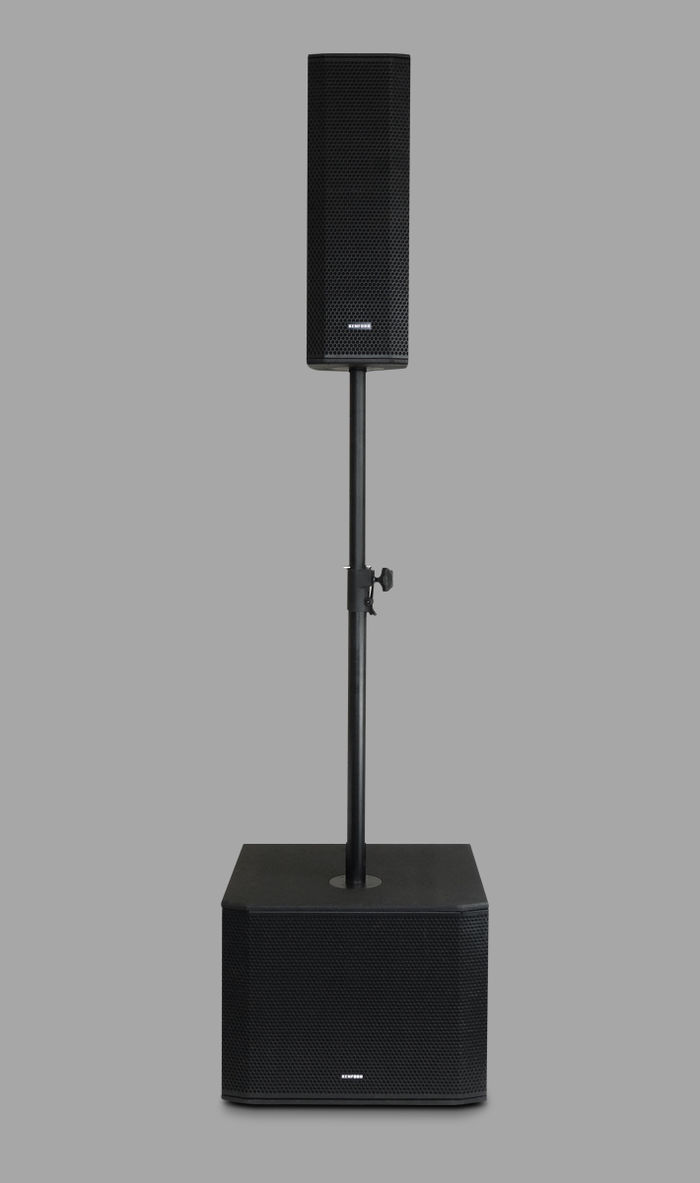

The NAC-602 1.1 satellite system, consisting of an active subwoofer and a passive broadband loudspeaker box, delivers an output power of over all 1600 watts and offers tremendous wearing comfort due to its very light construction and the ergonomically shaped handles. Using high-quality materials, the housing has been reinforced with a highly branched skeleton in the interior and thus reduces the resonances to a minimum.

The compact broadband loudspeaker box offers an outstanding resolution for the reproduction of human voices and the special shape of the housing offers as well the use as a stage monitor. Equipped with patented speaker technology, the 6.5 " chassis is powered by neodymium magnets and a 3" voice coil. The result is convincing with high sound pressure, a very low distortion and impressive range of the sound waves.

The powerful Class-D amplifier and the four pre-installed DSP programs allow the NAC-602 system to adapt to different environments and provide enough power to get used for small to medium-sized events. Due to its deep and dynamic bass, the crystal-clear mids and highs, the NAC-602 system is suitable for any demanding audio application.

Technical specifications

NAC-602

Chassis: 2x 6,5“ neodymium Woofer
  1x 1,75“ driver (with Titan-diaphragm)
Woofer voice coil: 3“
Frequenzy response: 80 Hz - 18 kHz
Impedance: 4 Ohm
Power: 300 W (RMS) / 600 W
Dispersion (6 dB): H90° x V60°
Sensitivity (1W/1m): 94 dB
SPL max. (dB)(1m): 121 dB
Connection: PA, conventional speaker connector
Measurement (HxWxD): 60 x 20,5 x 21 cm
Weight: 11 kg

NAC-612E active subwoofer

Chassis: 12“ Woofer
Subwoofer voice coil: 3“
Frequenzy response: 38 Hz - 500 Hz
Impedance: 8 Ohm
Power: 1200 W / 600 W (RMS)
Max. SPL (1m): 127 dB
Connection: PA / XLR / 1/4“ jack
Measurement (HxWxD): 40,9 x 51,2 x 47,9 cm
Weight: 25,5 kg

Amplifier module

Output power: SAT> 2x 400 W / 4 Ohm, SUB> 800W / 8 Ohm
S/N: >85 dB
Damping factor: >500 bei 100 Hz
Protection: Over voltage protection up to 264V/AC, overload output protection, clip , limiter, CLIP

KENFORD NAC-612E

Item No: 207238

KENFORD Extension Tube

Item No: 207239

KENFORD NAC-602 Satellite
