PM 5000 & 6000

PM-K800 integrated amplifier

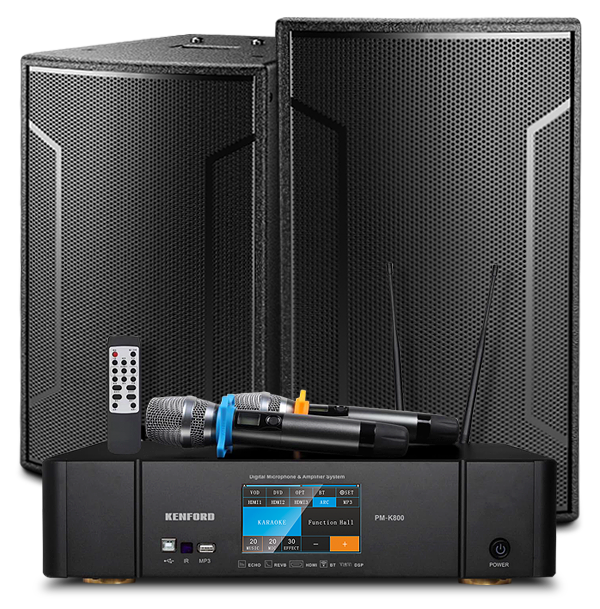

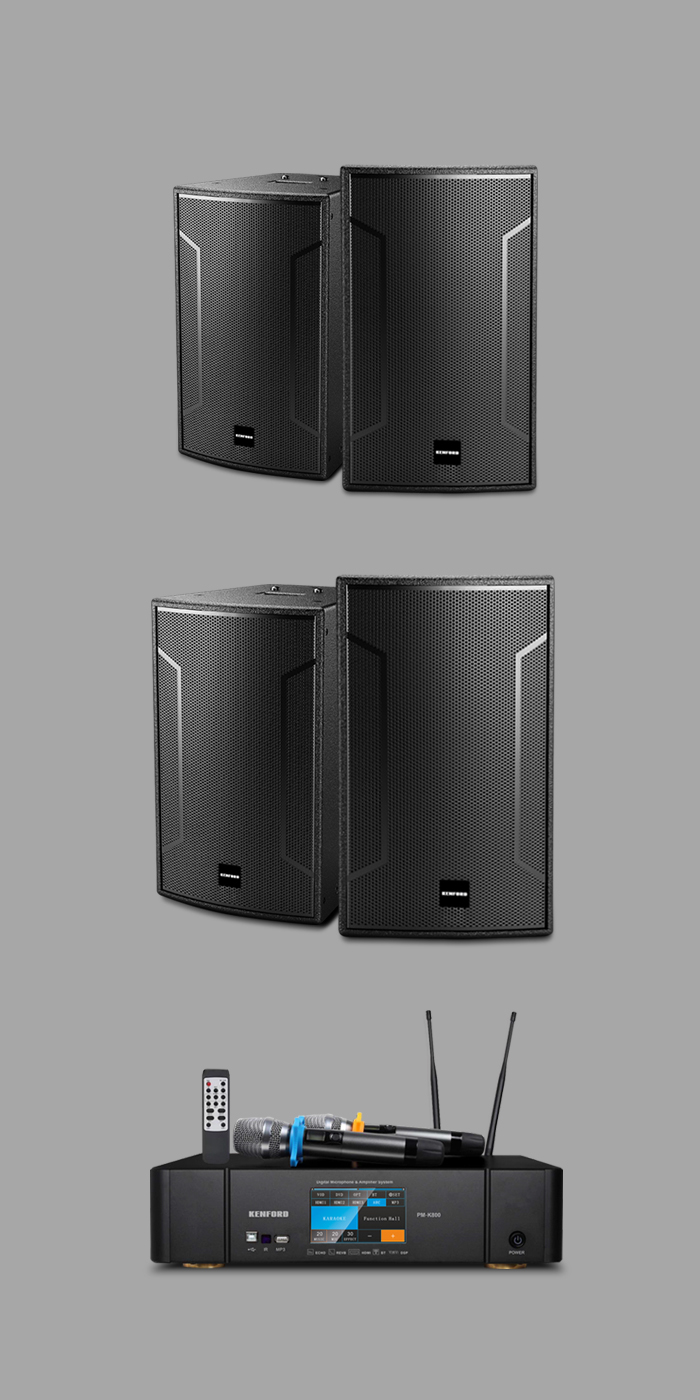

Thanks for your interest in this amazing kit! The system includes two passive wooden speakers 10” or 12”, one integrated amplifier (PM-K800) and two wireless microphones. Setup of the system provides multi functions of Bluetooth connection, MP3 player, wireless microphones, wire microphones (option), TV/VOD connection and aux signal input. All these signals are powerfully amplified to two speakers, so you can listen to music, sing songs helped by effects, and deliver speeches in a meeting. This is a truly amazing entertainment kit, plug and play. The digital amplifier and two speakers are professionally designed, offering you fabulous sound in installation or mobile usage in KTV, at home or in bars, meeting rooms, restaurants and so on.

FEATURES:
1. Ring-type transformer power supply, powerful Class D amplifier
2. 32Bits/192KHz DSP audio processing
3. Provided with two wireless microphones
4. Imported premium cones and voice coils adopted in full range speakers
5. Four karaoke modes and four multi-function hall modes switchable via touch screen
6. 3 in / 4 out HDMI input / output convertable
7. Optical fiber input available
8. MP3, Bluetooth input and play
9. Additional available output to active subwoofer
10. With wireless remote control

Technische Daten

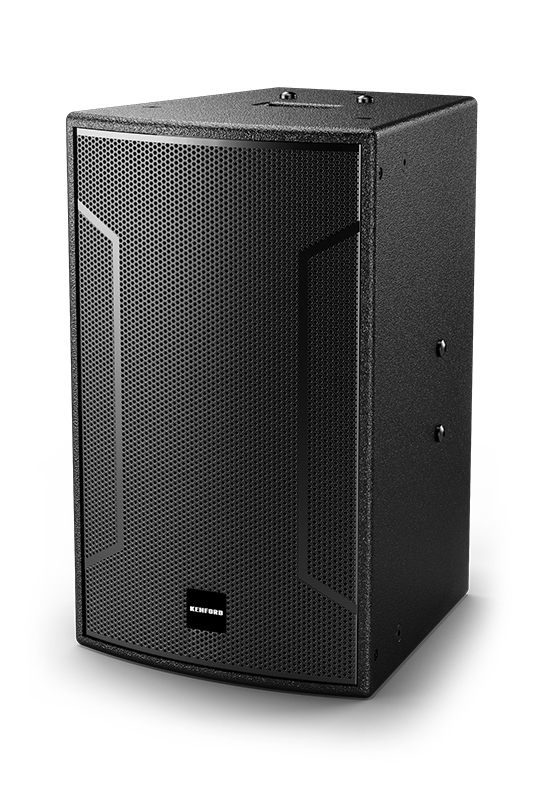

PM-5000 passive wooden speaker

Components: 10"(2.5"vc) woofer+1.35" driver
RMS Power (W): 300
Frequency Response (Hz): 60~20K
Sensitivity (dB) (1w/1m): 97
Impedance (Ω): 8
Product Size (cm): 30.5 x 33.8 x 50
Shipping Size (cm): 39.5 x 36 x 55.9
Product Weight (kg): 17.5
Gross Weight (kg): 19.5

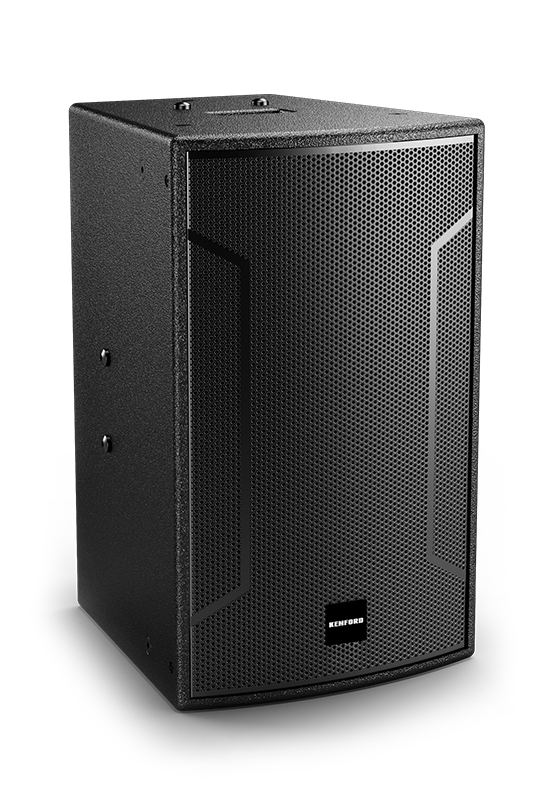

PM-6000 passive wooden speaker

Components: 12"(2.5"vc) woofer+1.35" driver
RMS Power (W): 350
Frequency Response (Hz): 55~20K
Sensitivity (dB) (1w/1m): 98
Impedance (Ω): 8
Product Size (cm): 38.1 x 42.2 x 61.4
Shipping Size (cm): 47.9 x 43.5 x 67.9
Product Weight (kg): 22
Gross Weight (kg): 24

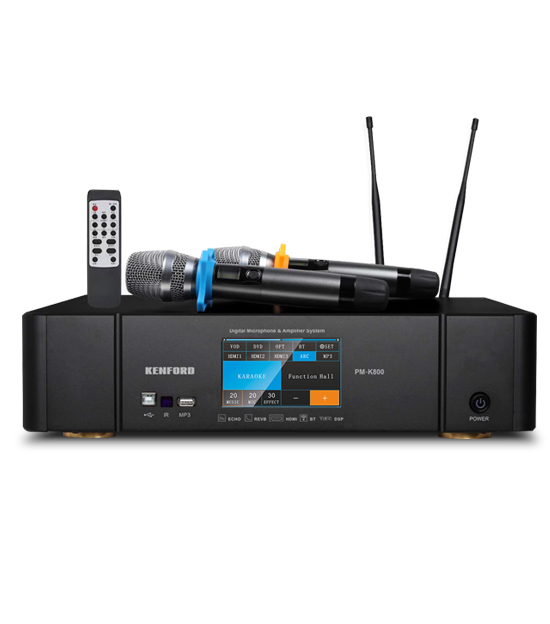

PM-K800 integrated amplifier

Output Power (EIA test standard,100Hz 1%THD): 2x450W/8 ohm
Frequency Response (Hz): 20~30K
Damping Factor: >240
Distortion: ≤0.2%
S/N: ≥95dB
DSP: 32Bits/192KHz
Wireless Microphone: UHF640MHz-690MHz(Mic A 001-100,Mic B 101-200)
Power Supply: 220V-240V/50-60Hz
Product Size (cm): 44 x 33 x 11.5
Shipping Size (cm): 53.5 x 48 x 22
Product Weight (kg): 10
Gross Weight (kg): 11.7
